- Place of Origin:CN;GUA
- Brand Name:OEM
- Model Number:HC300M

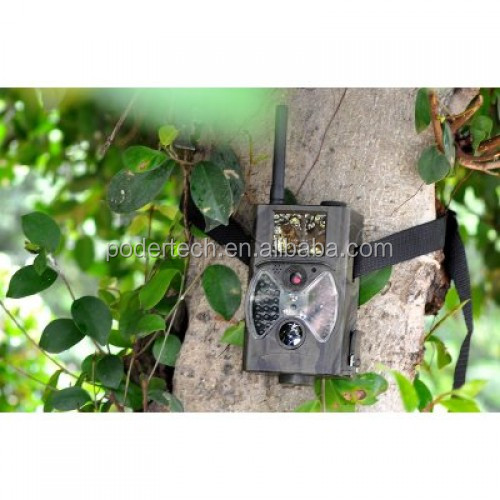

HC-300M camera HD 12MP 940NM MMS/GPRS camera Scouting Infrared Trail Hunting camera
Product Description

Product Features:
- 12 megapixel infrared digital game camera
- Night range up to 65ft
- IR triggered trail camera with MMS function
- 2.0 inch colorful LCD display
- 36 white LED lamps makes the product more concealment
- Captures high quality pictures and records HD video clips 1080P
Camera Body Interface:
- The camera has the following I/O interfaces: USB connector, SD-card slot, SIM-card slot, TV output and external DC power connector.
- Take a few moments to familiarize yourself following the camera controls and displays. It is helpful to bookmark this section and refer to it as you read through the rest of the manual.
- The remote control is an input device of the camera and is primarily used for customer settings and password input. This is an infrared type wireless remote control. The maximum remote distance is 9 meters. There are fifteen buttons on the remote control. (Note: Remote control is inside of the camera)
Specifications:
Image Sensor Type(True Megapixels) | 5.0 Megapixels Color CMOS |
Memory | SD Card 8MB~32GB |
Lens | F=3.1mm, FOV(Field of View)=60 degree |
PIR Sensing Distance | 65 feet (20 m) |
Number of IR LED | 36 LEDs white |
TFT Display Screen | 2.0 inch |
IR Filter | Full Automatic IR Filter |
Selectable Image Resolution | 12MP/8MP/5MP |
Video Resolution | 1080P(25fps), 720P(25fps), VGA(30fps) |
PIR Sensor sight angle | 100 degrees |
PIR Sensitivity | 3 sensitivity levels: High/Normal/Low |
Trigger speed | 1.1 second |
Triggering interval | 1 second ~ 60mins (default 5 sec) |
Operation Temperature | -30 - +70 centigrade /-22 - +158 centigrade |
Multiple Frame | 1/3/6/9 |
File Format | JPEG/AVI |
Periodic Shot | 1Second ~ 24Hours |
Power Supply | 8xAA or 4xAA battery |
Stand-by Current | 0.25mA |
Exposure | Auto |
Date Time Imprint | Yes |
Moon Phase Imprint | Yes |
MMS/Email/SMS Support | Support |
Device Serial No | 4 Digits and 26 alphabet set by yourself |
Interface | TV out(NTSC/PAL); USB; SD Card Holder; 6V DC External |
Fix Method | Belt, Tripod Nail |
Camera Socket | Yes |
Water Proof | IP54 |
Dimensions | 145x80x55mm |
Weight | About 0.32Kg without battery |
Security Authentication | FCC, CE, RoHS |
Package Includes:
- 1 X Digital Camera
- 1 X Wireless Remote Control
- 1 X Antenna
- 1 X USB Cable
- 1 X TV Cable
- 1 X Belt
- 1 X CD Manual
