- Place of Origin:CN;GUA
- Brand Name:OEM
- Model Number:S680
S680 Hunting Camera 20m Infared Wild Life 720P 1080P Vedio Camera 2.5 Inch TFT Screen 40 LED Hunter Trail Camera
Product Description

Summary
- Programmable Resolutions: 5/8/12
- Optional sound recording with Videos.
- 40 Ifra-red diodes with a flash range of 20+ meters,940nm.
- Adjustable PIR sensitivity (high, Med, low).
- Multi-shot pictures (Take up to 7 pictures per trigger).
- Fast trigger time, just 0.8-1s.
- Supports standard 6~12V solar panel (available for purchase separately).
- Colour pictures & video during day; black and white at night.

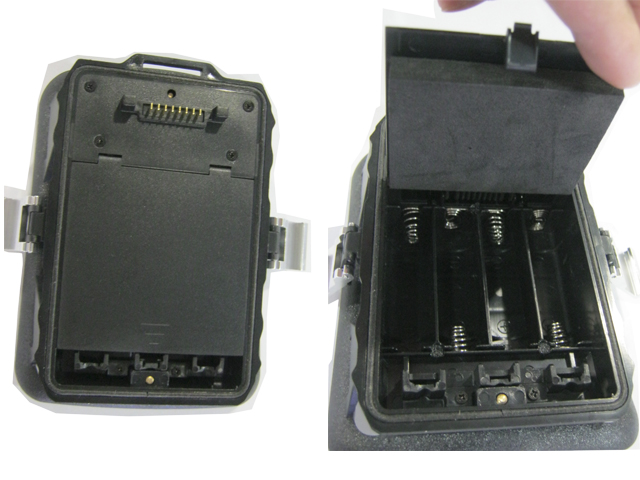

- Operates on 4 or 8 AA alkaline batteries. Standby time on 8 batteries without activity should be around 6 months.
- Time lapse setting for automatic and constant shooting of pictures/videos at a pre-set interval.
- Displays a user specified label, date, time, temperature and moon phase on every picture. This will allow you to draw a correlation between environmental factors and wildlife activity.

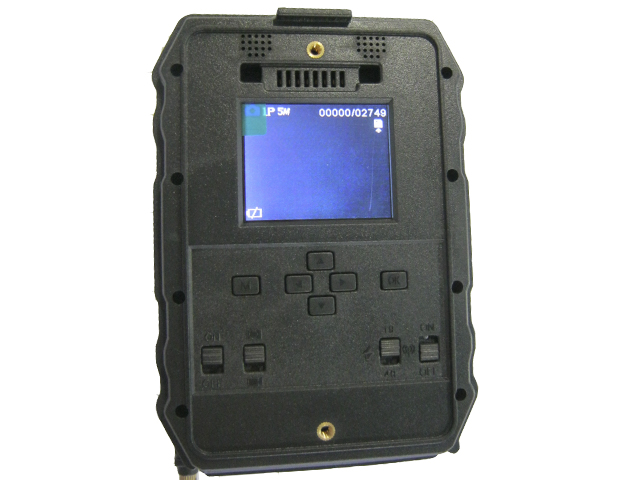

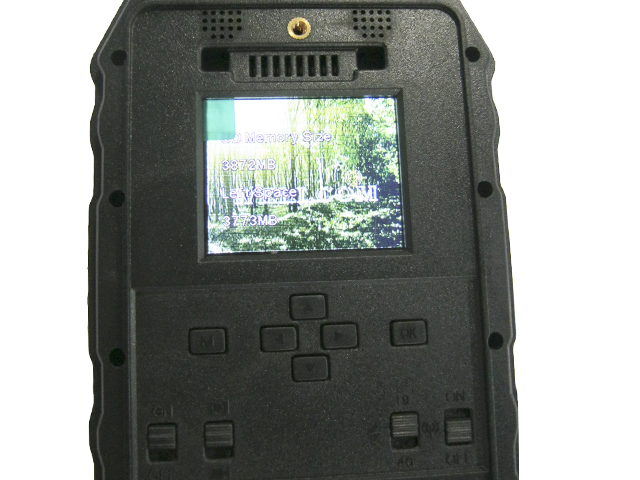

- Built-in 2.0"TFT colour screen allows you to review photos and videos in camera.
- Two different TV OUT settings allow you review photos/videos from you television.
Camera Specification |
Image Sensor | 5 / 8 / 12 Mega Pixels Color CMOS |
Effective Pixels | 2560x1920 |
Day/Night Mode | Yes |
IR arrange | 20m |
IR Setting | Top: 19 LED, Foot: 21LED |
Memory | SD Card (8MB – 32 GB) (sells separately) |
Operating keys | 10 |
Lens | F=3.0; FOV=52°; Auto IR-Cut-Remove (at night) |
LCD Screen | 2” TFT, RGB, 262k |
PIR Sensitivity | 3 sensitive level: High / Normal / Low |
PIR distance | 12m – 15m |
PIR Angle | 60 |
Picture size | 5MP/8MP/12MP = 2592x1944/3264x2448/4000x3000 |
Picture Format | JPEG |
Video resolution | 1080P,720P, 640x320, 320x160 |
Video Format | AVI |
Video Length | 1-60sec. programmable |
Shooting Numbers | 1-7 |
Trigger Time | 0.8-1s |
Trigger Interval | 2s-5s |
Camera + Video | Yes |
Playback Zoom in | 2x, 3x, 4x |
Time Lapse | Yes |
Beep Sound | ON/OFF |
SD Card cycle | ON/OFF |
Operation Power | Battery: 6V; DC: 12V |
Battery Type | 8AA(not includes) |
External DC | 12V |
Stand-by Current | 0.15mA |
Stand-by Time | 4~6 months (4×AA~8×AA) |
Auto Power Off | auto switch to mode “ON” in 60s without any operations |
Power Consumption | 210mA (+650mA when whole 40 IR LEDs light up) |
Low battery Alert | 4.8V (4.8V: alert; 4.6V: power off) |

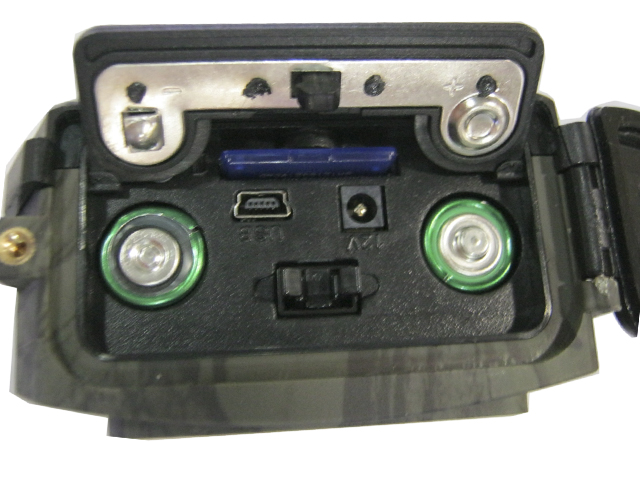

Interface | TV out/USB/SD Card/DC Port |

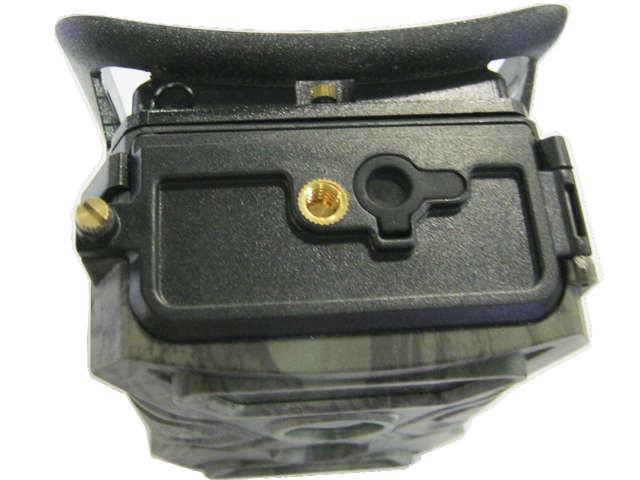

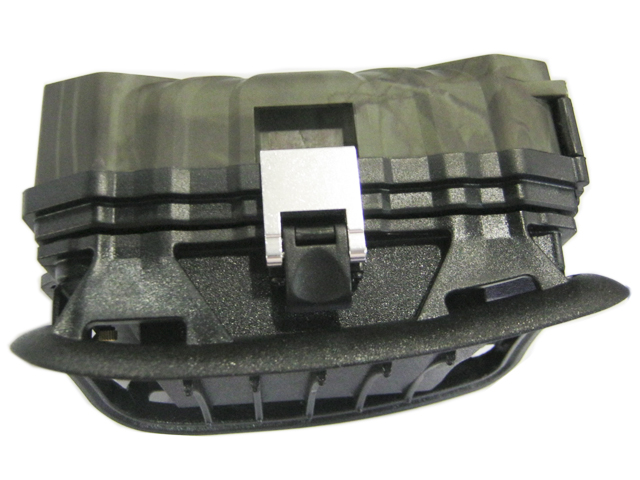

Mounting | Strap; Tripod |
Operating Temperature | -25°C to 60°C |
Storage temperature | -30 °C to 70°C |
Operation Humidity | 5%-90% |
Waterproof spec | IP54 |
Dimensions | 131.42 x98.72 x77.44mm |
Weight | 300g |
Certification | CE FCC RoHs |

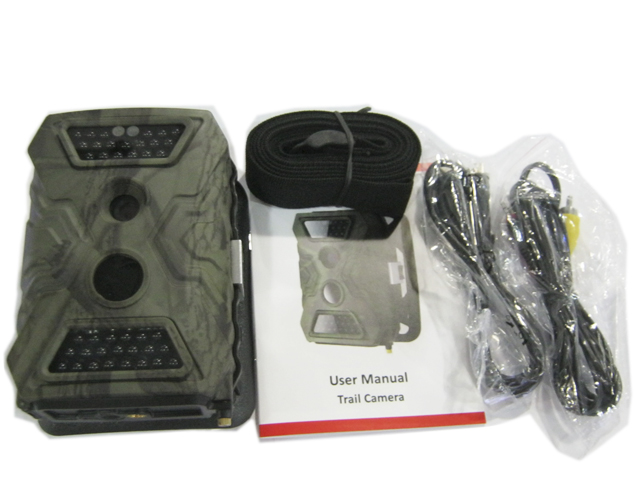

Package Included:
1 x Digital Camera
1 x USB Cable
1 x TV Cable
1 x Strap
1 x User Manual
